What is GT-3DMBD Machinery?

GT-3DMBD Machinery allows analysis for NVH and durability/losses in automotive geartrain systems such as transmission, differential, xEV gearbox, timing and auxiliary drives. However, functionality is applicable to any machinery or machine subsystem such as wind turbine transmissions, marine drivelines, helicopters and power transmission and reduction systems in industrial machinery.

AdobeStock_1560795073
GT-Machinery3D4

ENHANCED MACHINERY MODELING

Understand Complex Machinery

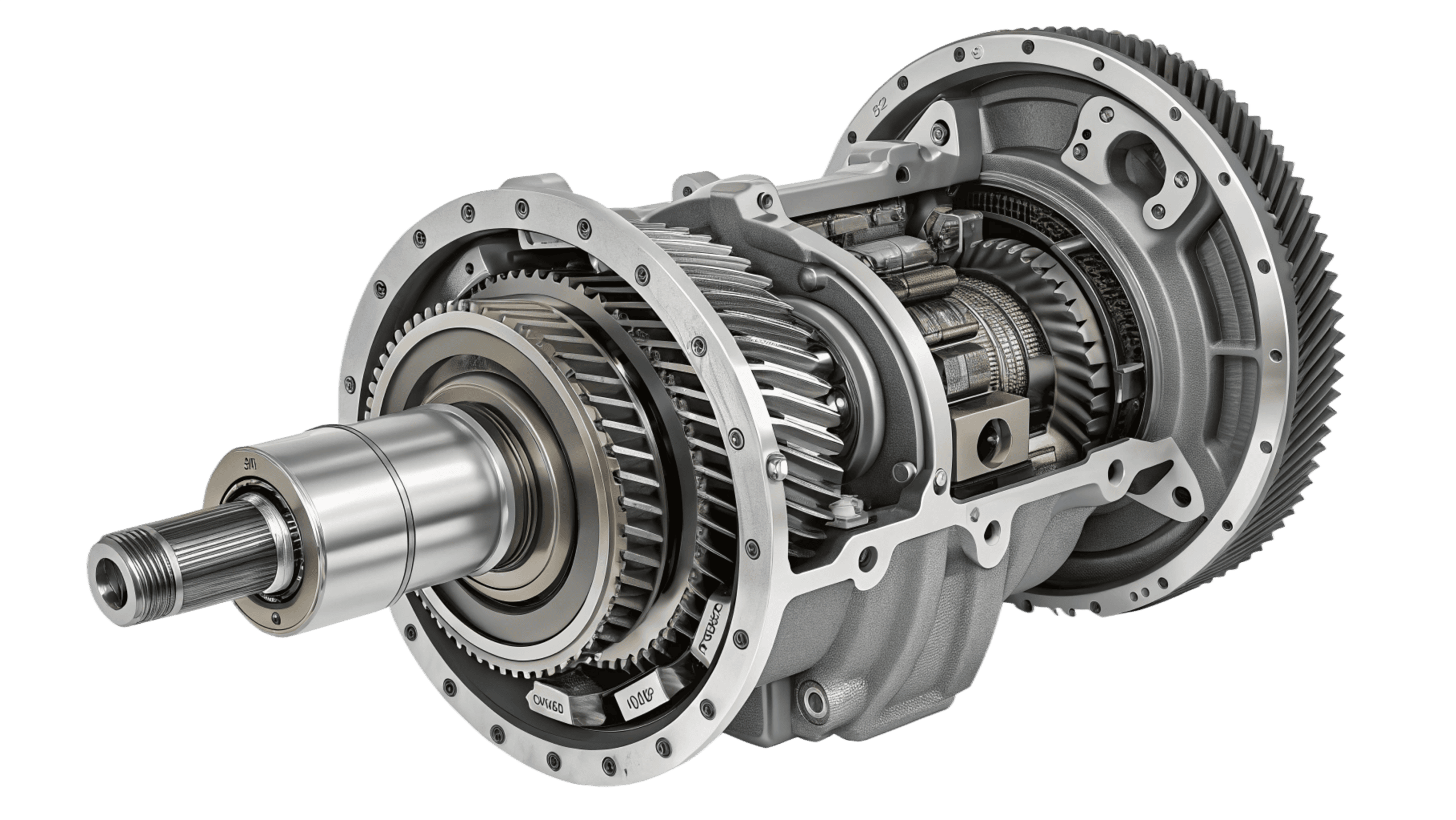

GT-3DMBD Machinery is a set of modeling elements aimed at the dynamic modeling of machinery involving shafts, cylindrical and bevel gears, together with flexible bearing and gearbox structural models, to address powertrain loss and NVH issues with higher fidelity.

AdobeStock_1830042886

Use Cases

  • Full Geartrain Analysis

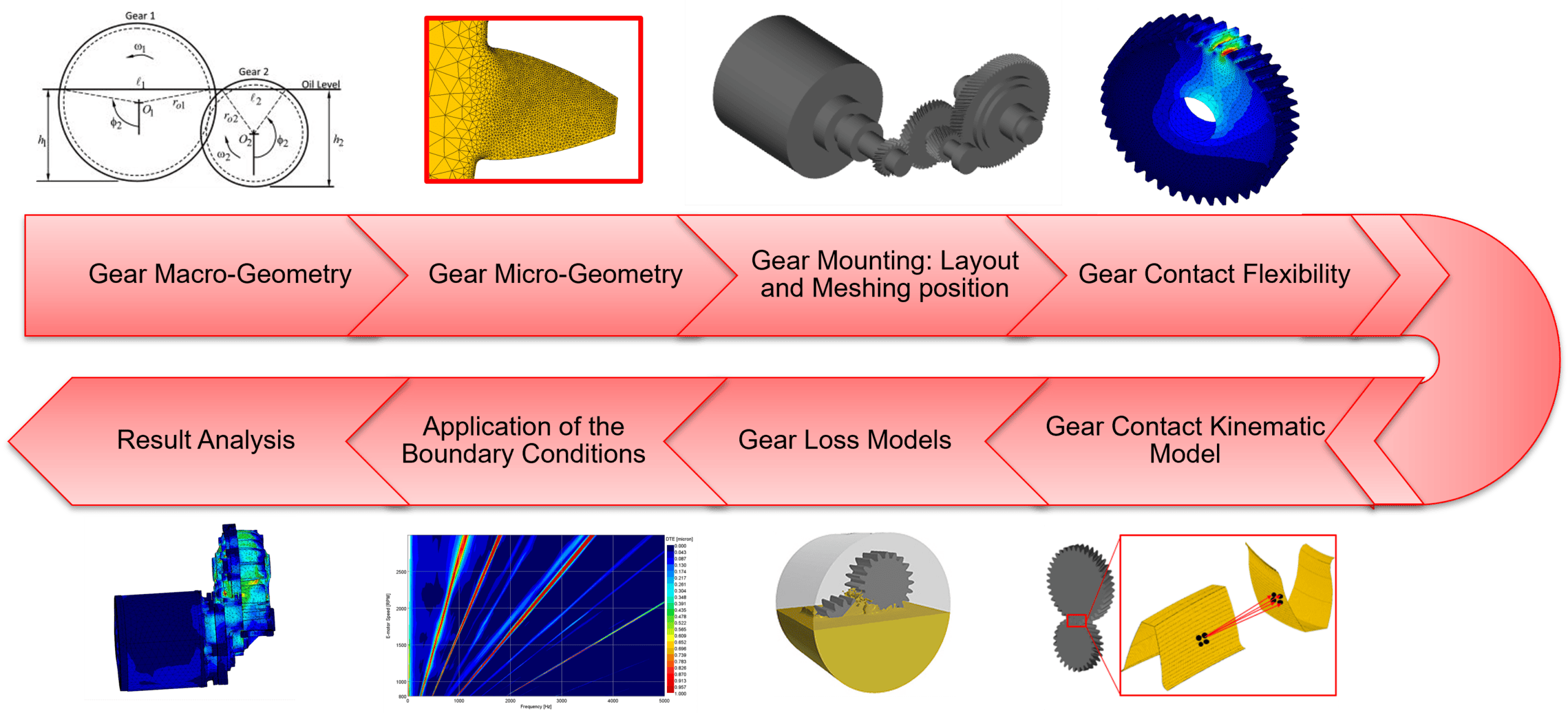

    GT-3DMBD Machinery offers a comprehensive workflow for geartrain design. From the tooth design to the gear stress to the NVH analysis, GT-3DMBD Machinery allows the engineer to study all aspects of the geartrain.

    GT-Machinery3D6-1
  • Understand Gear Stress

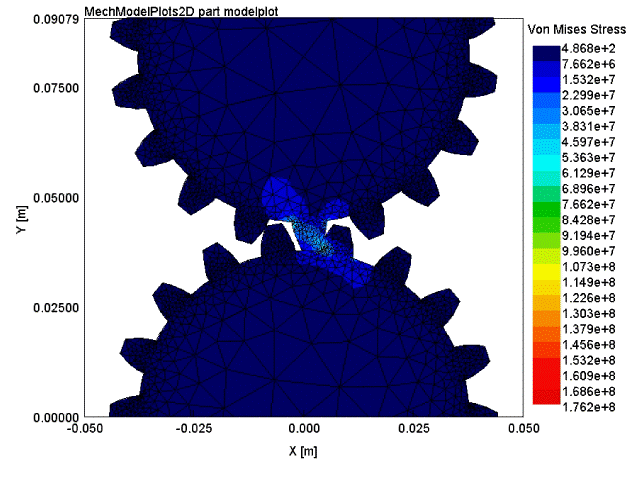

    With GT-3DMBD Machinery’s advanced gear contact models, a user is able to model the stresses within many gear designs. This allows the engineer to have a better designed geartrain that is more reliable and higher performing.

    mechanical stress analysis illustration of 2 gears

Advanced Features

Machinery Modeling Capabilities

check mark icon

Roller Bearing Dynamics

Roller Bearing dynamic models.

check mark icon

Advanced Gear Contact Modeling

Advanced Gear Contact Models including micro-geometry.

check mark icon

Gear Contact Tribology

Gear Contact Tribology.

check mark icon

Machinery Loss Modeling

Machinery Loss Models.

check mark icon

Hydrodynamic Bearing Models

Use of hydrodynamic models for Thrust Bearings and Bushings.

check mark icon

Vehicle System Integration

Integration with Vehicle System.

check mark icon

3D Geartrain Modeling

3D UI for visually building model of a geartrain or drive system.

check mark icon

Multi-physics Integration

Multi-physics integration such Hydraulics or Electromagnetics (JMAG).

check mark icon

NVH Analysis

Analyze vibration and dynamic behavior of machinery components to support noise, vibration, and harshness assessment.
