Bearing simulation integrated with cranktrain, lubrication, and thermal models — evaluated under real operating conditions.
Solution Overview

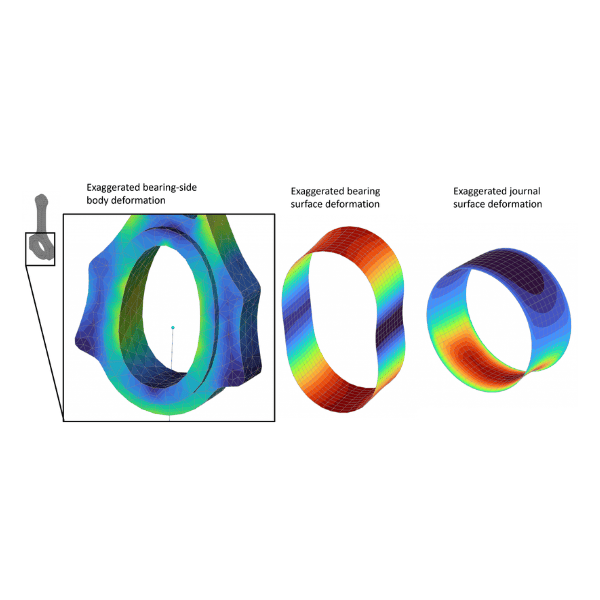

Bearing performance has a direct impact on engine durability, friction losses, and system reliability. Engineers need simulation tools that reflect the physical complexity of hydrodynamic and elasto-hydrodynamic lubrication, not simplified models that miss critical load cases. GT-SUITE’s bearing simulation solution solves the full Reynolds equation to predict oil film pressure, minimum film thickness, journal orbit, and metal-to-metal contact across the complete operating cycle. When elastic deformation of the bearing shell or journal is significant, the EHD solver accounts for structural compliance, giving engineers accurate film thickness predictions under high-load conditions where rigid-body assumptions break down.
Bearing models run natively within the GT-SUITE environment, they receive realistic boundary conditions from connected crankshaft, lubrication, and thermal models. This integration eliminates the need to manually transfer loads between tools and ensures that bearing assessments reflect true system behavior. The result is faster design iteration, reduced physical testing, and greater confidence in bearing survival predictions before hardware is built.
BEARINGS, EHD
Fast running Mobility method bearing model

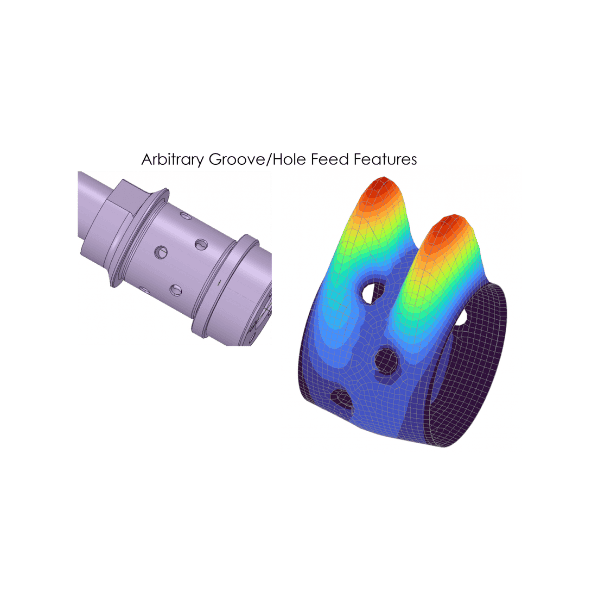

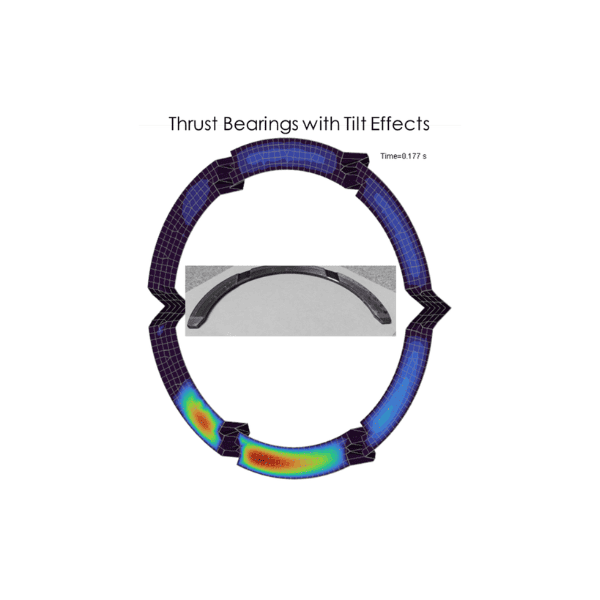

Finite Element HD bearing model
Roller bearings
Advanced Features

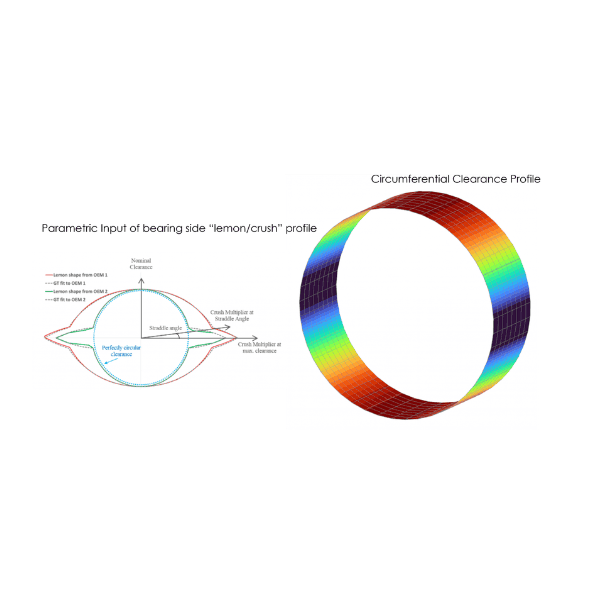

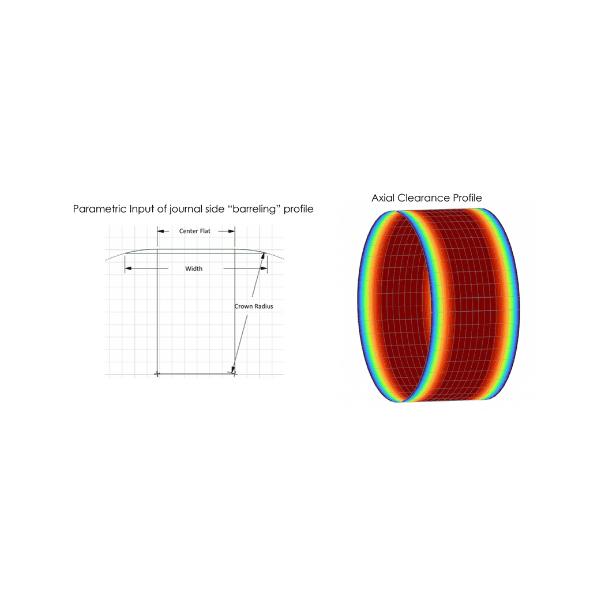

Analyze bearing performance using advanced EHD, deformation, and load distribution methodologies.
Accurately resolve maximum hydrodynamic pressure across the bearing surface to identify overloading conditions before they occur. This output directly supports bearing geometry optimization and material selection decisions.

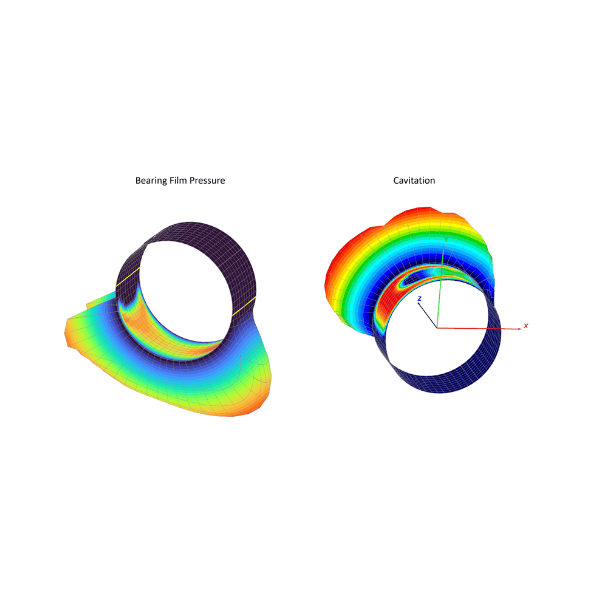

Capture the complete 2D or 3D oil film pressure distribution throughout the bearing cycle, providing engineers with spatial insight into load-carrying behavior and pressure gradients that point-based metrics cannot reveal.
GT-SUITE applies a mass-conserving cavitation algorithm to accurately predict film rupture and reformation zones within HD bearings. This prevents over-prediction of load capacity and ensures reliable performance assessment under real operating conditions.
Simultaneously track minimum oil film thickness and the onset of asperity contact to assess bearing survival margins under high-load or transient conditions. This merged capability gives engineers a direct indicator of wear risk and seizure potential.
Simulate the full trajectory of the journal within the bearing clearance across the operating cycle, enabling engineers to assess dynamic stability, eccentricity behavior, and proximity to bearing boundaries under realistic load conditions.
Predict temperature rise within the oil film using a thermal balance model that accounts for viscous dissipation and heat transfer, ensuring lubricant performance and bearing integrity are maintained across the full operating range.
