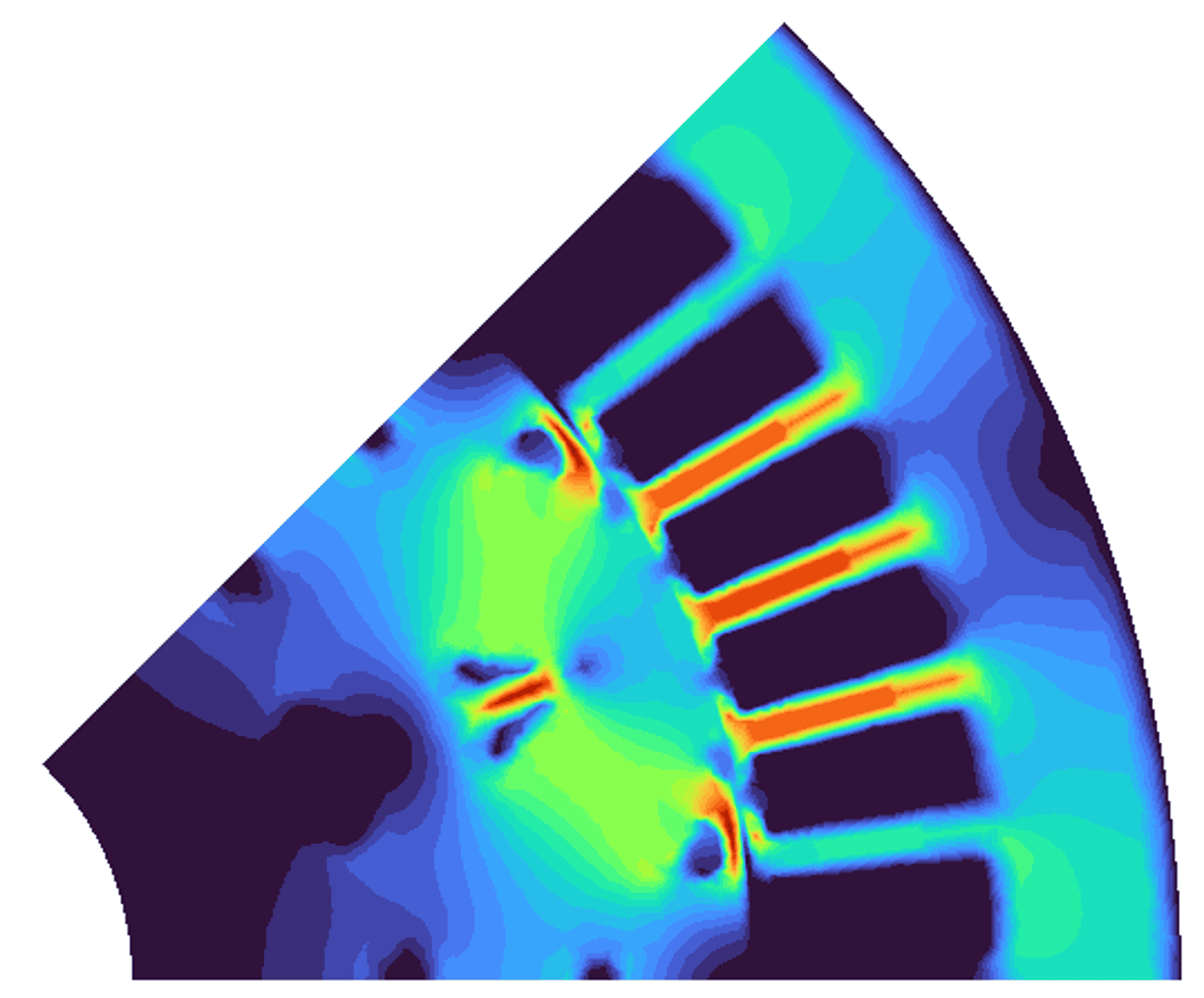

GT’s long history of multi-physics with GT-FEMAG’s 2D electromagnetic solution for electric motors unlocks unique multi-physics motor design and optimization capabilities
Solution Overview

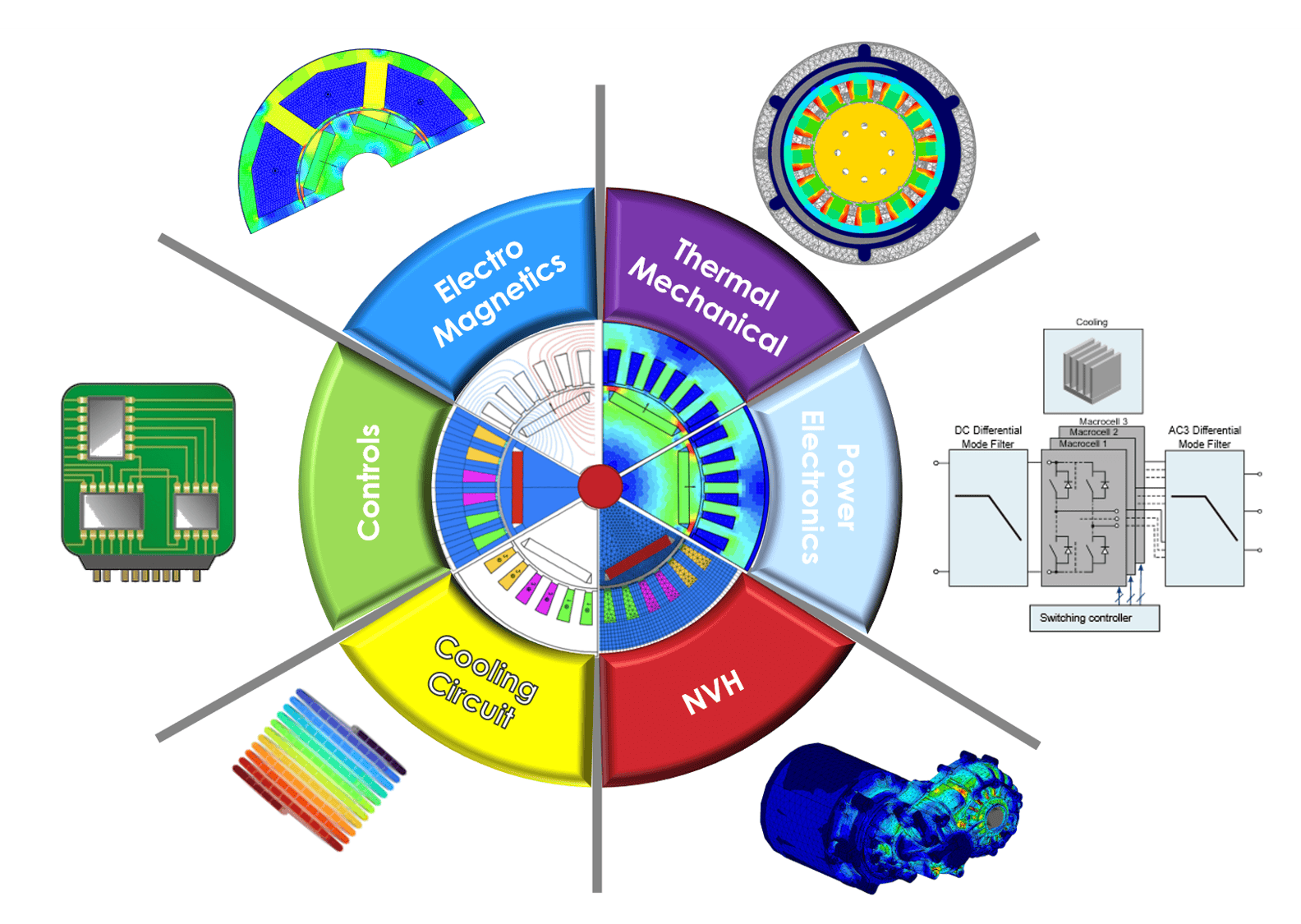

Design and optimize electric motors while accounting for all major physics domains:
Application Highlights

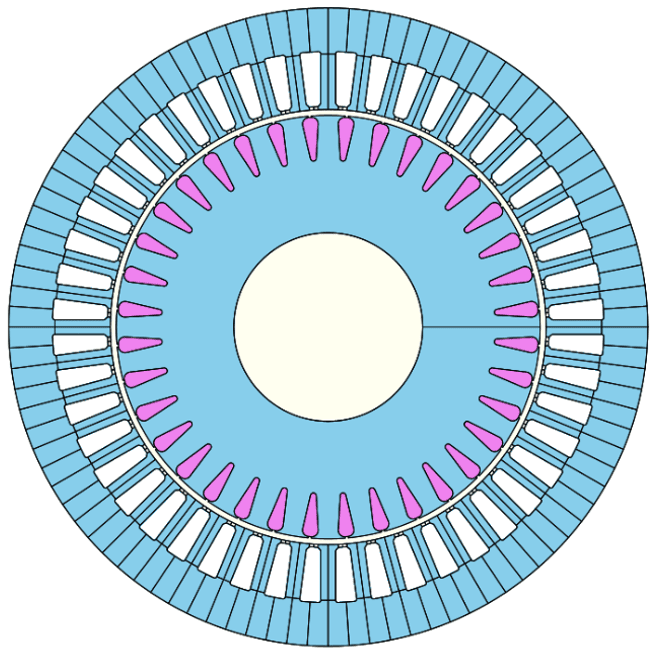

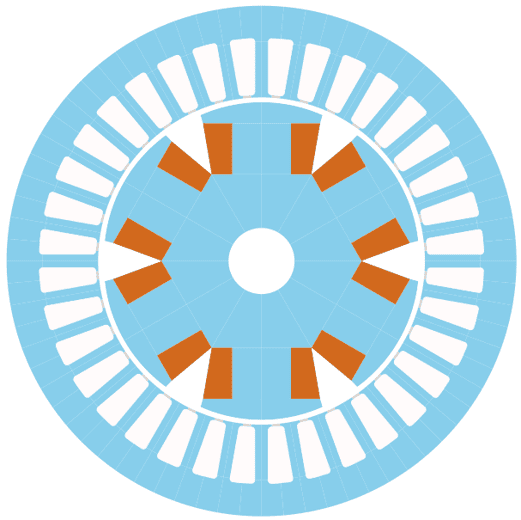

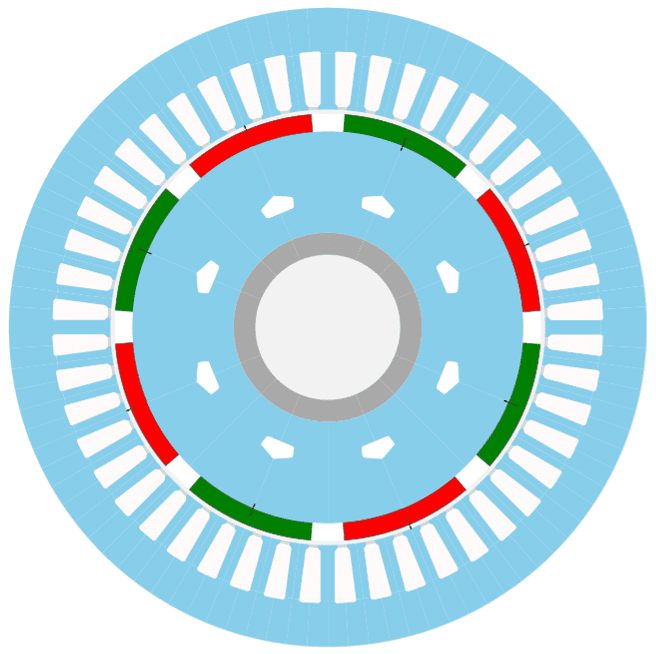

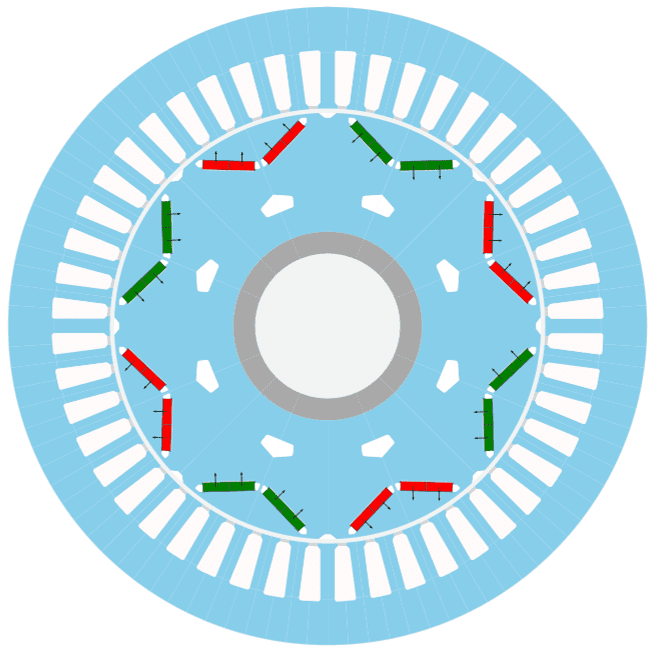

Simulate every common motor topology:

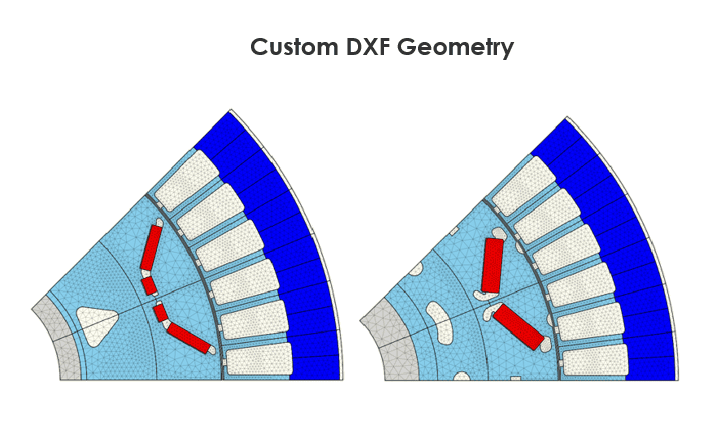

Build geometry your way:
APPLICATION HIGHLIGHTS

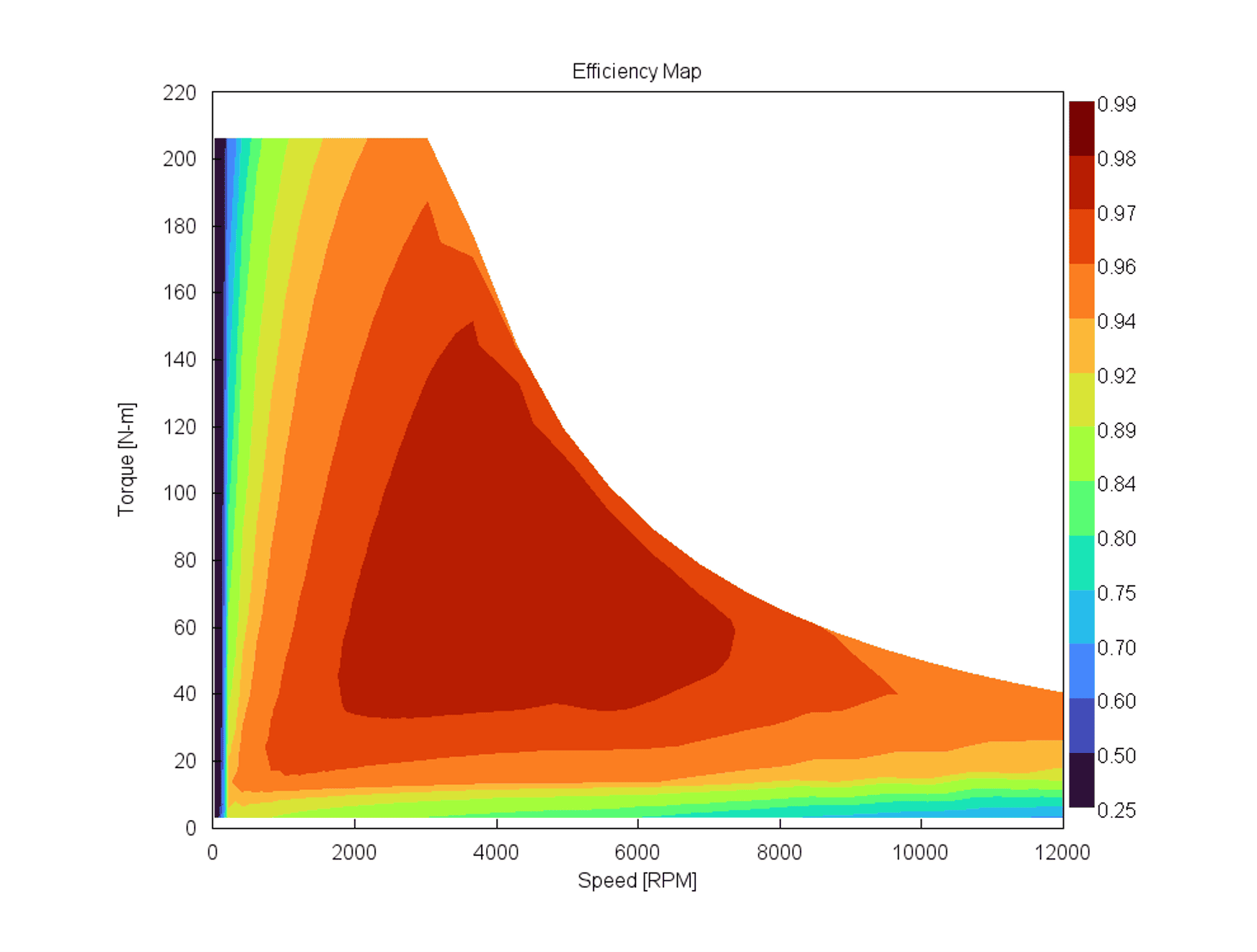

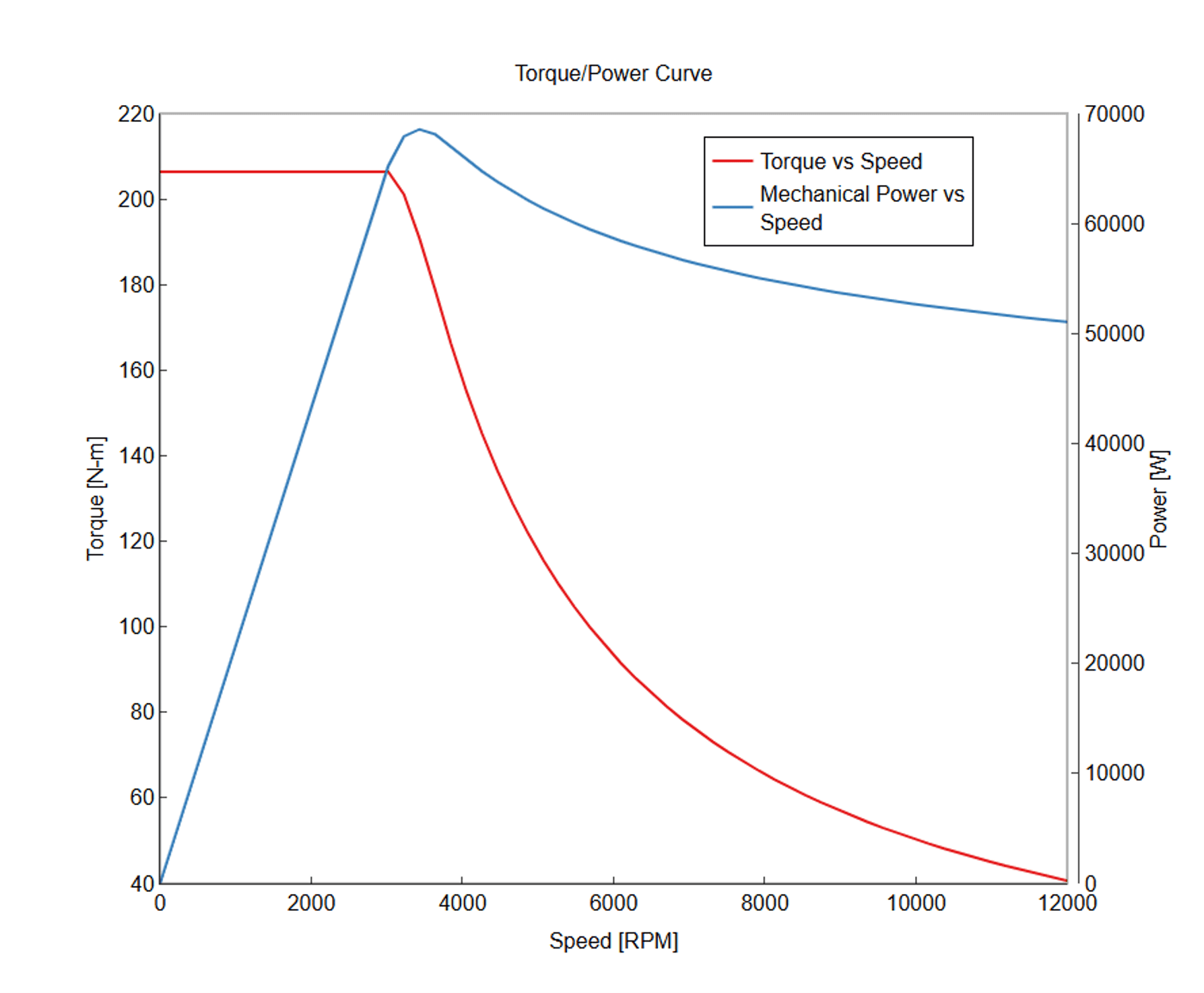

Quickly get to model results:
APPLICATION OVERVIEW

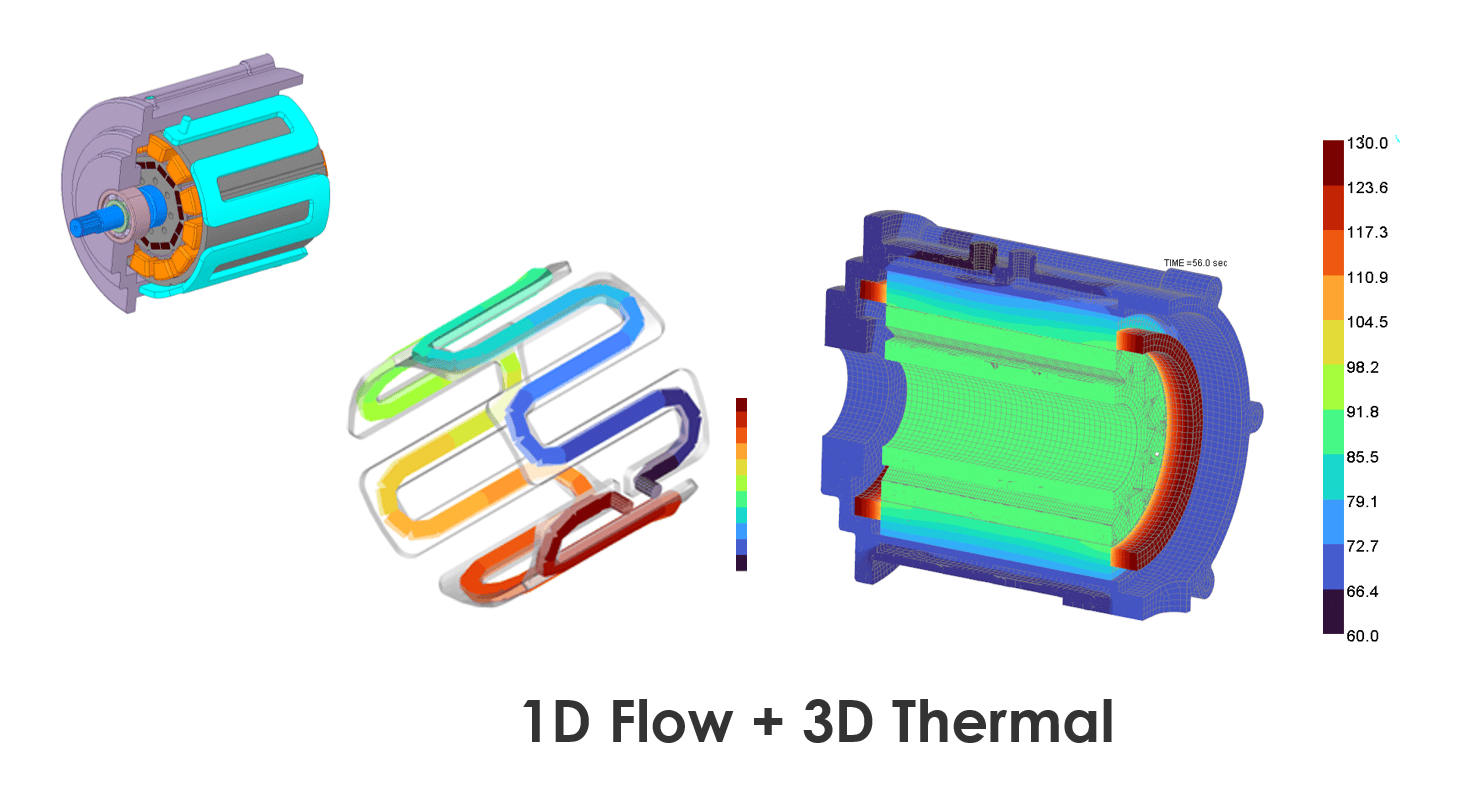

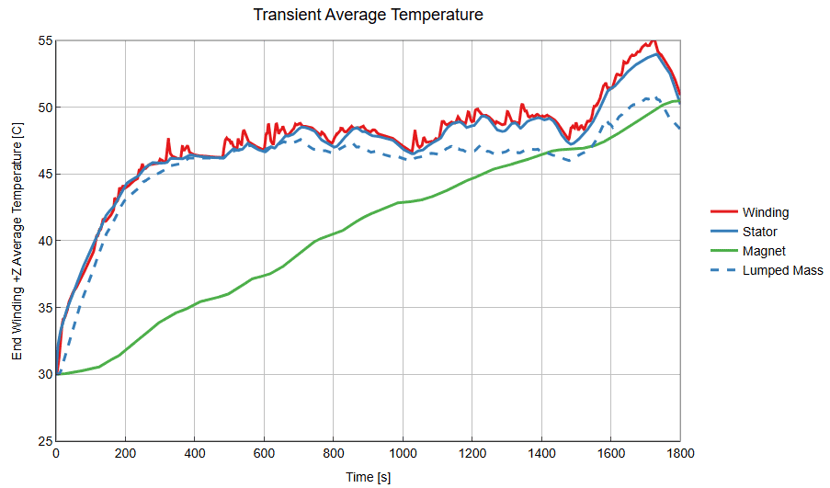

Pair GT-FEMAG’s electromagnetic losses with GT-SUITE’s state-of-the-art 1D-3D thermo-fluids simulation environment to predict continuous torque and validate cooling design with the accuracy you need without the runtime cost of 3D CFD conjugate heat transfer. Integrate this thermal model into system-level environments using 1D thermo-fluid networks or machine-learning metamodels, capturing transient temperature distribution across a full drive cycle.
APPLICATION OVERVIEW

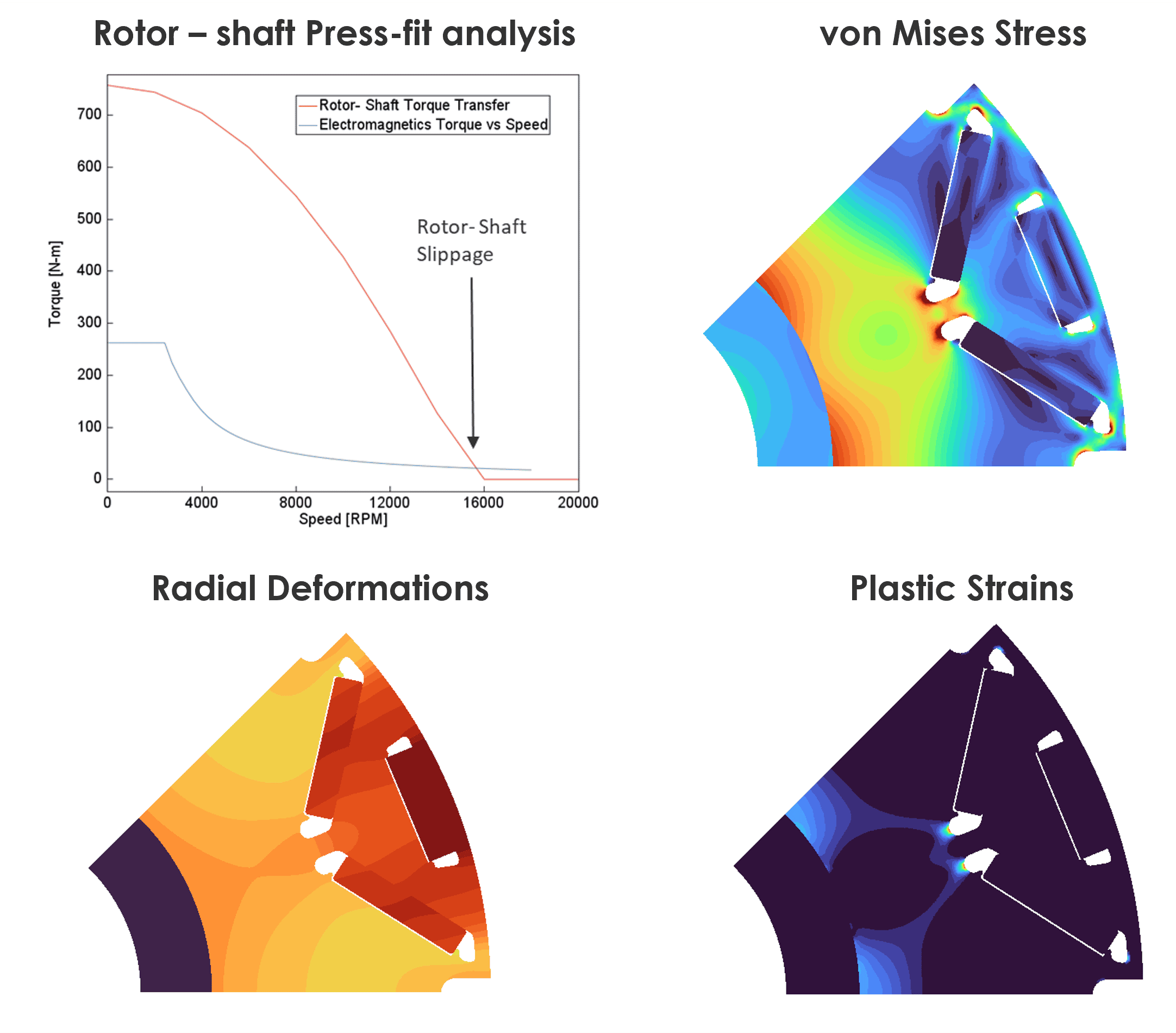

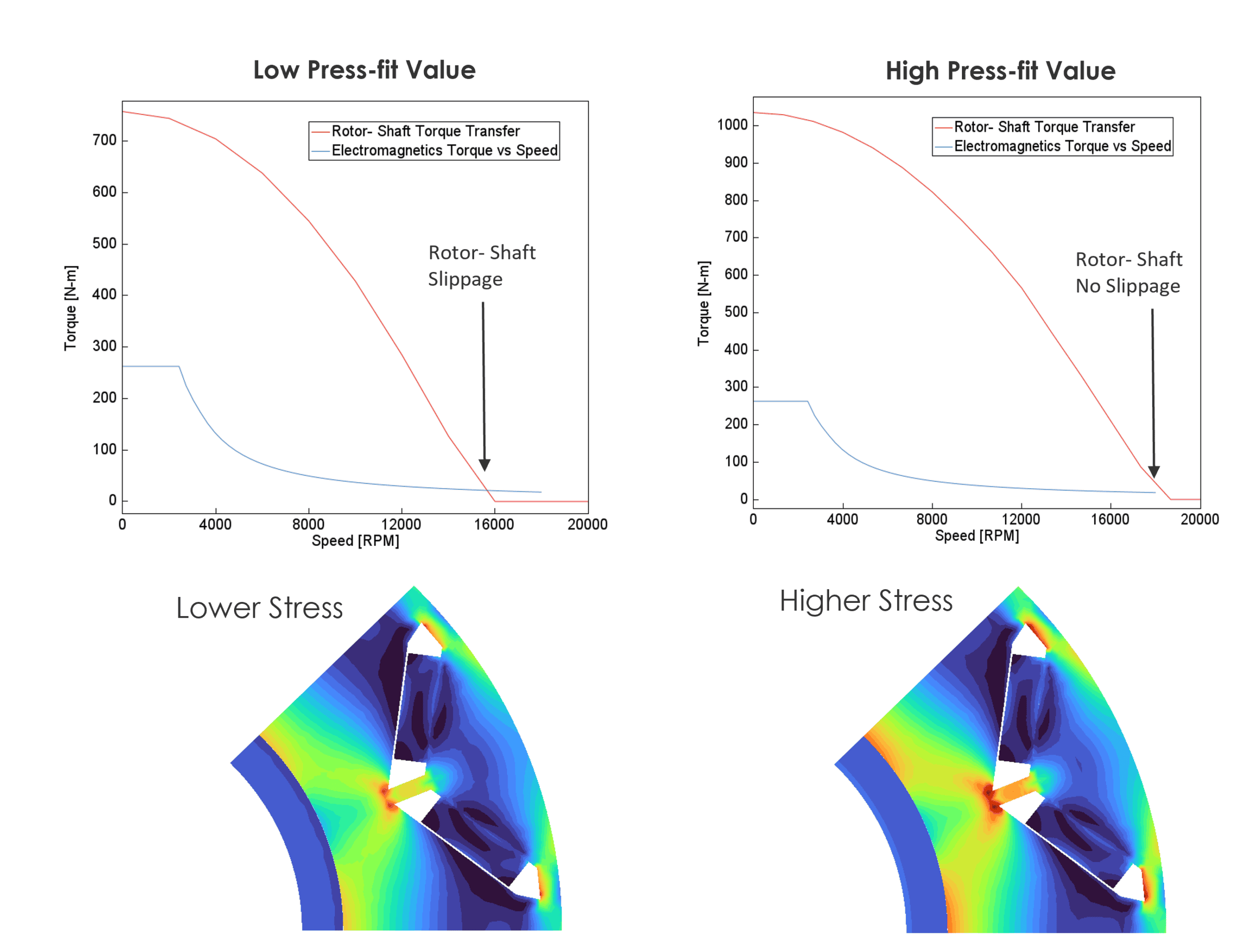

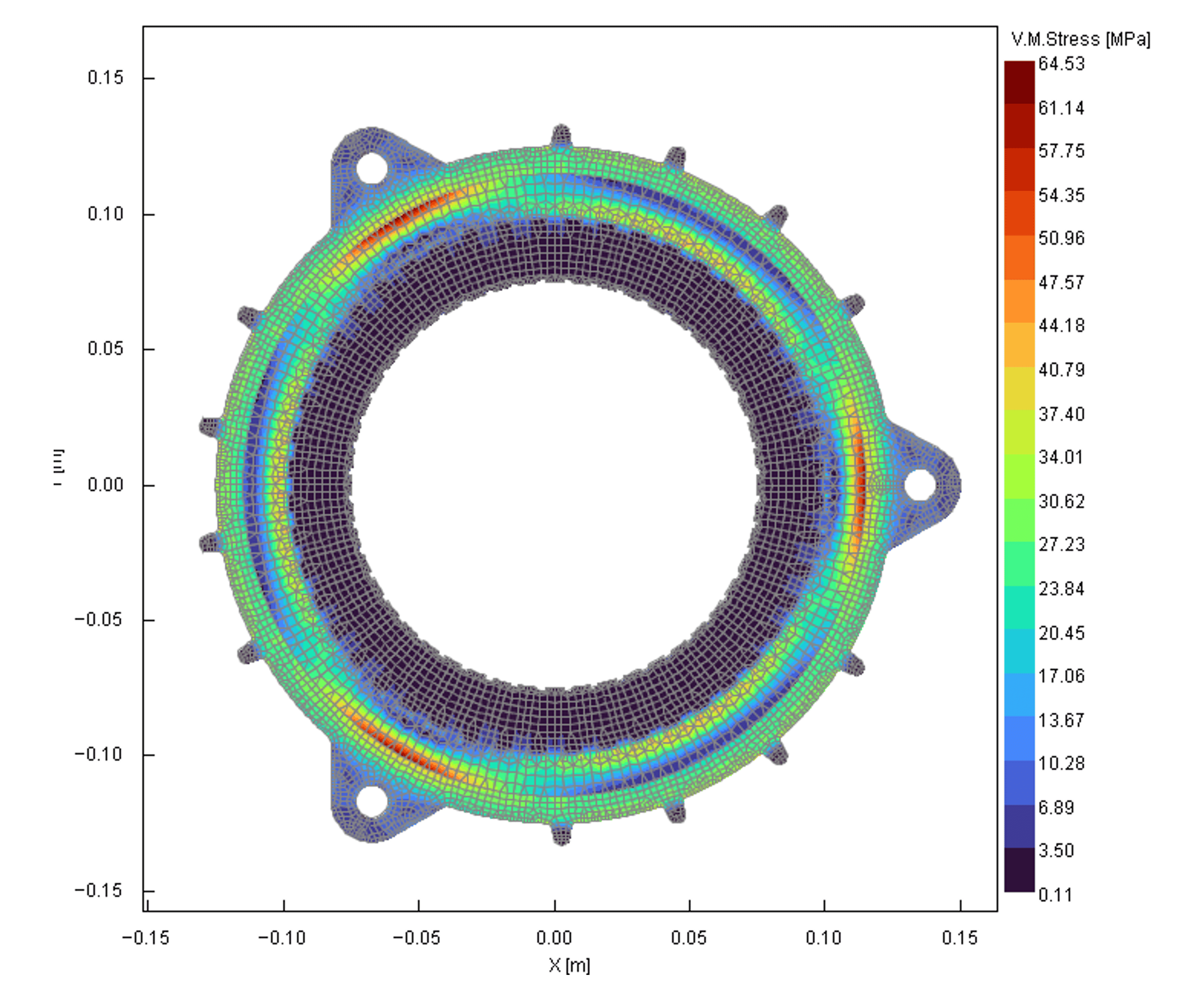

Simulate rotor and stator structural performance with built-in 2D mechanical finite element analysis. Rotor analysis covers the rotor-to-shaft press-fit, static centrifugal force for maximum-speed prediction, and plastic strain. Stator analysis covers the stator-to-housing press-fit.
APPLICATION OVERVIEW

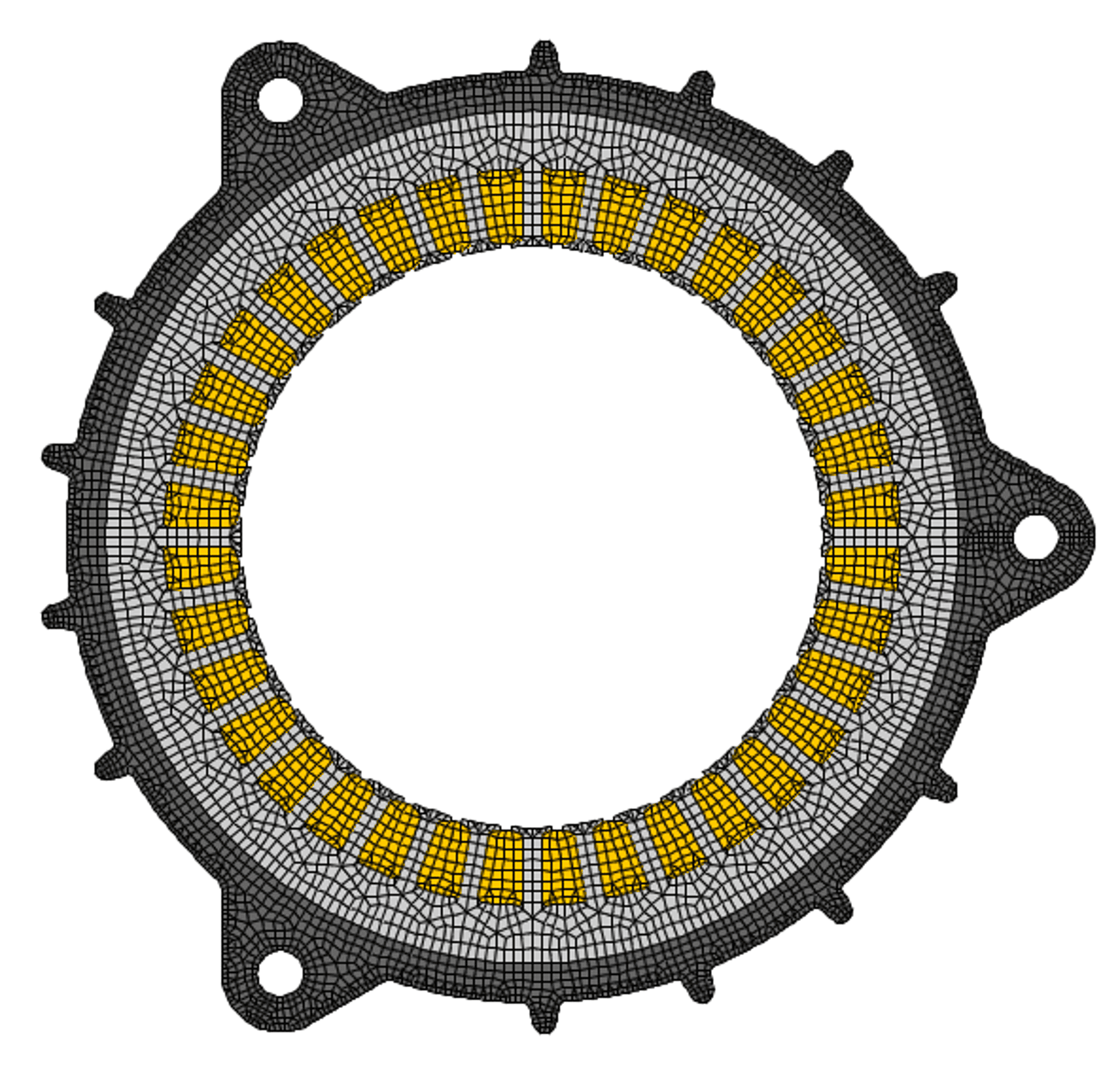

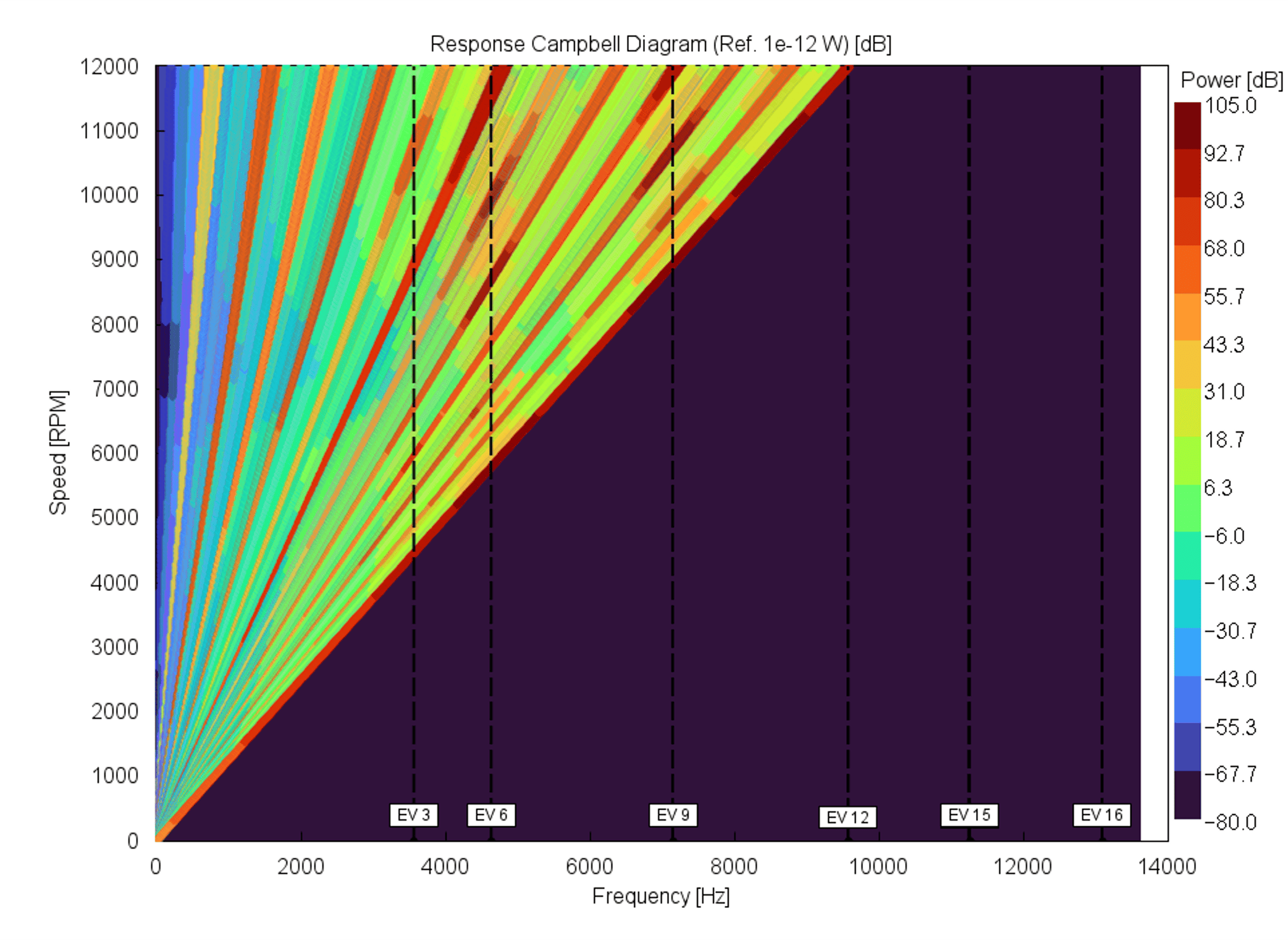

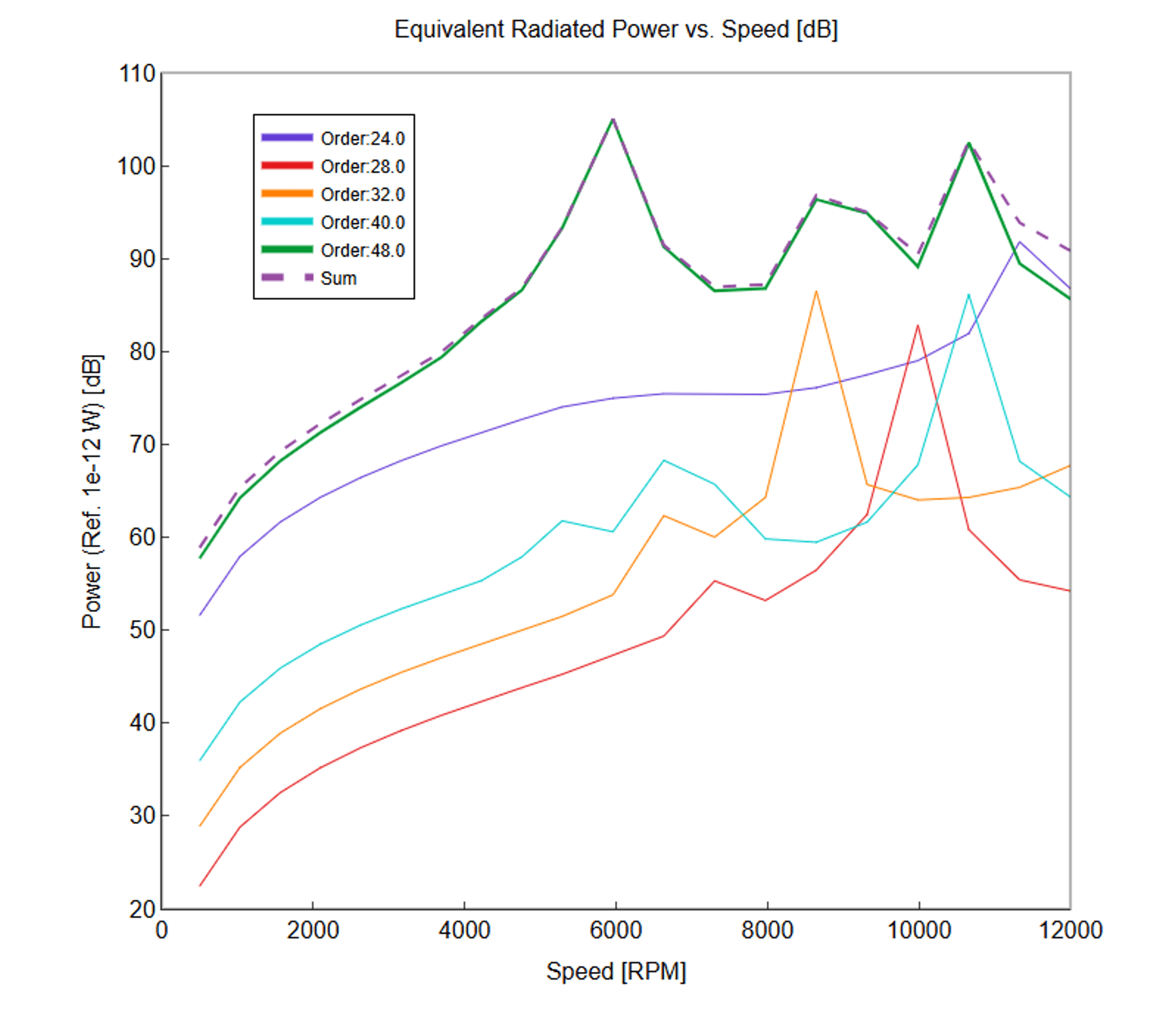

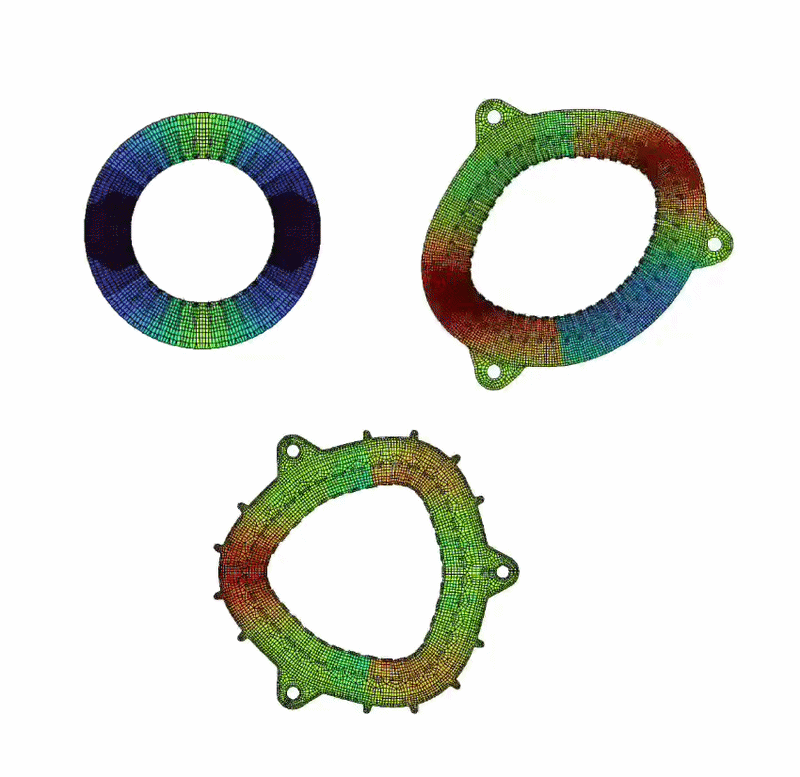

Predict NVH directly in GT-FEMAG with full 2D mechanical finite element simulation of stator, housing, lobe, and winding vibration driven by electromagnetic forces. Connect to GT-SUITE’s 3D mechanical solver to resolve 3D mode shapes, link to mounting points and gears, and capture detailed NVH behavior — including additional harmonics introduced by inverter PWM controls via GT-SUITE’s inverter models.
APPLICATION OVERVIEW

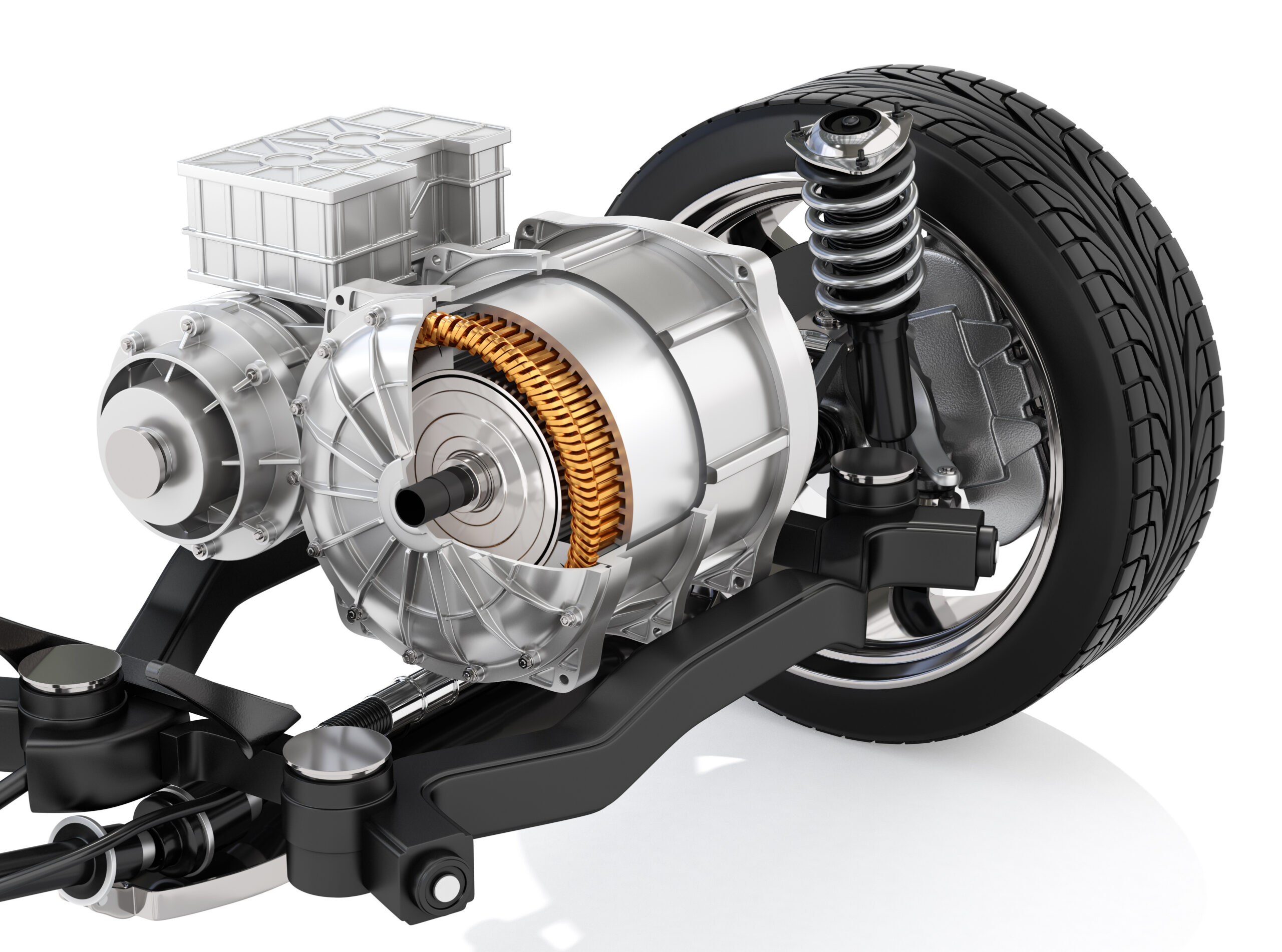

Bring electric machines into any multi-physics, system-level analysis in GT-SUITE:
ADVANCED FEATURES
Utilize GT’s built-in optimization capabilities, including GT’s design-of-experiments and machine-learning assistant tools, GT’s direct optimization capabilities, and GT-ProcessMap for multi-step, procedural, optimization routines.
Capture not only burst speed simulations of rotors, but also the plastic strain of repeated cycles at high speed
Capture high frequency losses in windings, steel laminations, and magnets, including ability to parameterize magnet segmentation

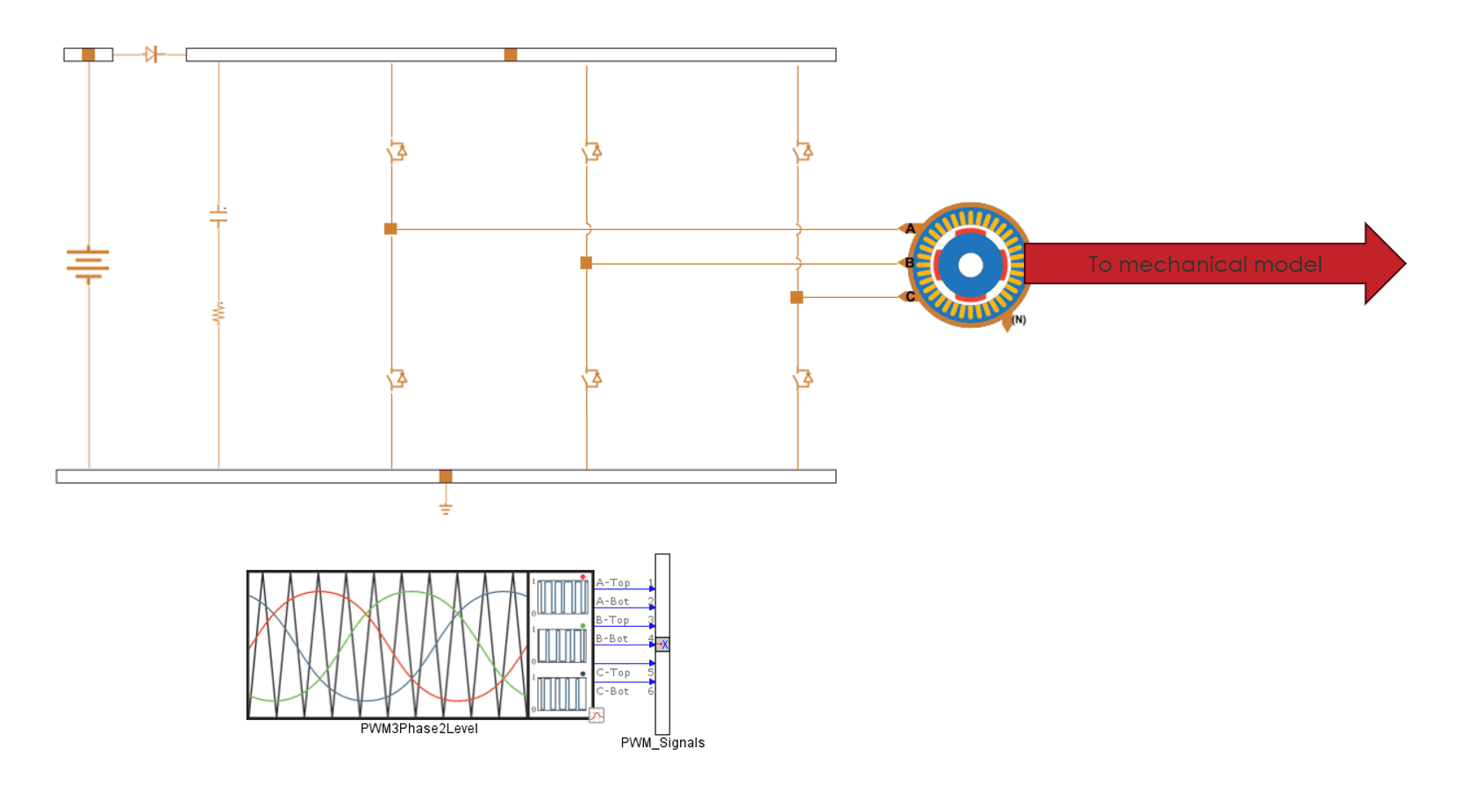

Capture the effects of inverter control and switching frequency on the noise, vibration, and harshness of traction motors
Use ready-made controls templates for industry-standard motor controls and inverter switching logic

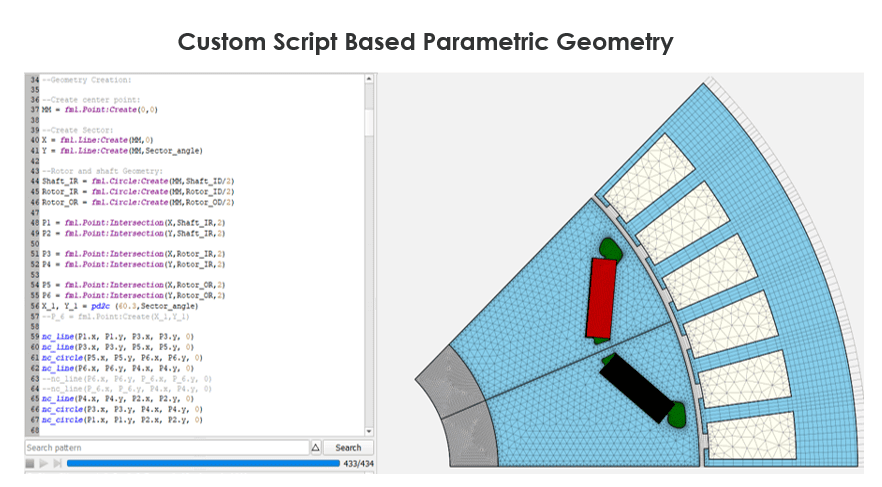

Create customized parametric motor geometry, even custom Bezier curves, to optimize the fine details of motor geometry
