Fuel Cell System Modeling

GT-SUITE is the ideal platform for the analysis and optimization of fuel cell systems and their components

Talk to an Expert View All Solutions

Solution Overview

Range Of Capabilities

Combining industry leading productivity tools and collaboration features with advanced multi-physics modeling capabilities, GT-SUITE can be used throughout the entire product development process.

GT-SUITE integrates flow, thermal, chemical, and electrical solutions to enable complete modeling of the Balance of Plant and Vehicle Systems, such as air compression and humidification, hydrogen storage and recirculation, cooling systems, power management controls, and more.

The flexible range of fidelity provides an ideal simulation environment for system design, component selection, and controls optimization.

hydrogen logo on gas stations fuel dispenser. h2 combustion Truck engine for emission free ecofriendly transport.
Fuel cell vehicle

Application Highlights

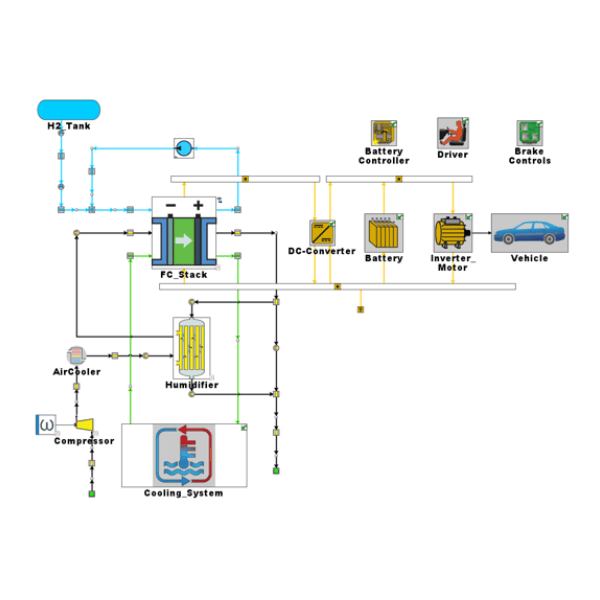

Modeling the Complete Fuel Cell System

  • Modeling of any fuel-cell system configuration with GT-SUITE’s object-oriented model building architecture
  • Design and selection of components such as fuel cell stack, compressors, pumps, humidifiers, ejectors, heat exchangers, tanks, and more.
  • Optimization of water management, thermal, stoichiometry, and pressure controls.
  • Drive-cycle analysis for power management and battery sizing to ensure drivability, fuel economy, and reliability
  • Ability to operate at the proper combination of fidelity and speed to capture important transient effects, such as flooding, starvation, hot spots, and more.
  • Solver Features:
    • Compressible Navier-Stokes solution with real gas equation
    • Multiple species and multiple phases possible
    • Dynamic condensation and evaporation models
    • Time-accurate solver – required for transient analyses and control system development
    • Well-tested compressor and turbine map interpolation and extrapolation capabilities
Heavy Duty Industrial Green Hydrogen Fuel Cell Stack System

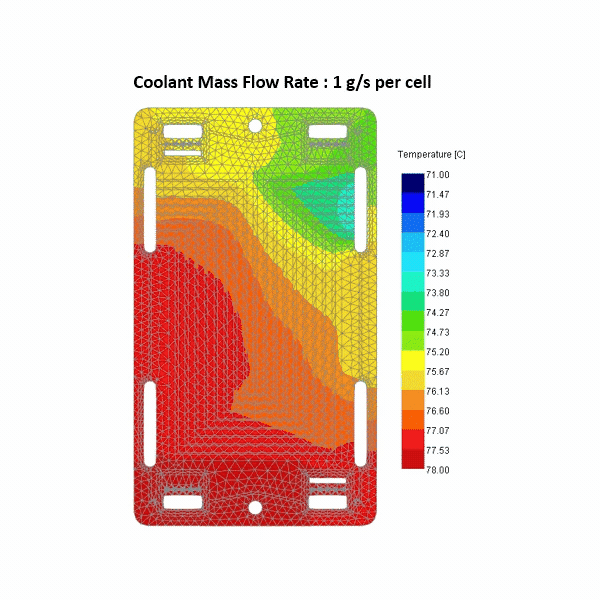

Fuel Cell Cooling

Advanced Features

Advanced Fuel Cell System Integration Tools

GT-SUITE supports higher-fidelity analysis with real-time simulation, hardware-in-the-loop testing, degradation modeling, and multi-domain co-simulation for the most demanding fuel cell development needs.

check mark icon

PEMFC, SOFC & Electrolysis Solutions

Solutions for PEMFC, SOFC, and Electrolysis.

check mark icon

Multi-System Integration

Integration with other systems modeled in GT-SUITE.

check mark icon

Real-Time & XiL Modeling

Real-time modeling and XiL compatibility.

check mark icon

Dedicated Fuel Cell Component Templates

Dedicated templates for modeling fuel cell system components such as humidifiers and ejectors.

check mark icon

High-Fidelity 3D-to-1D Model Conversion

High fidelity 3D-1D model conversion from CAD geometry using GEM3D.

check mark icon

Fluid Property Library & User-Defined Fluids

Library of fluids provided with software, plus option to add user defined fluids.
